Description

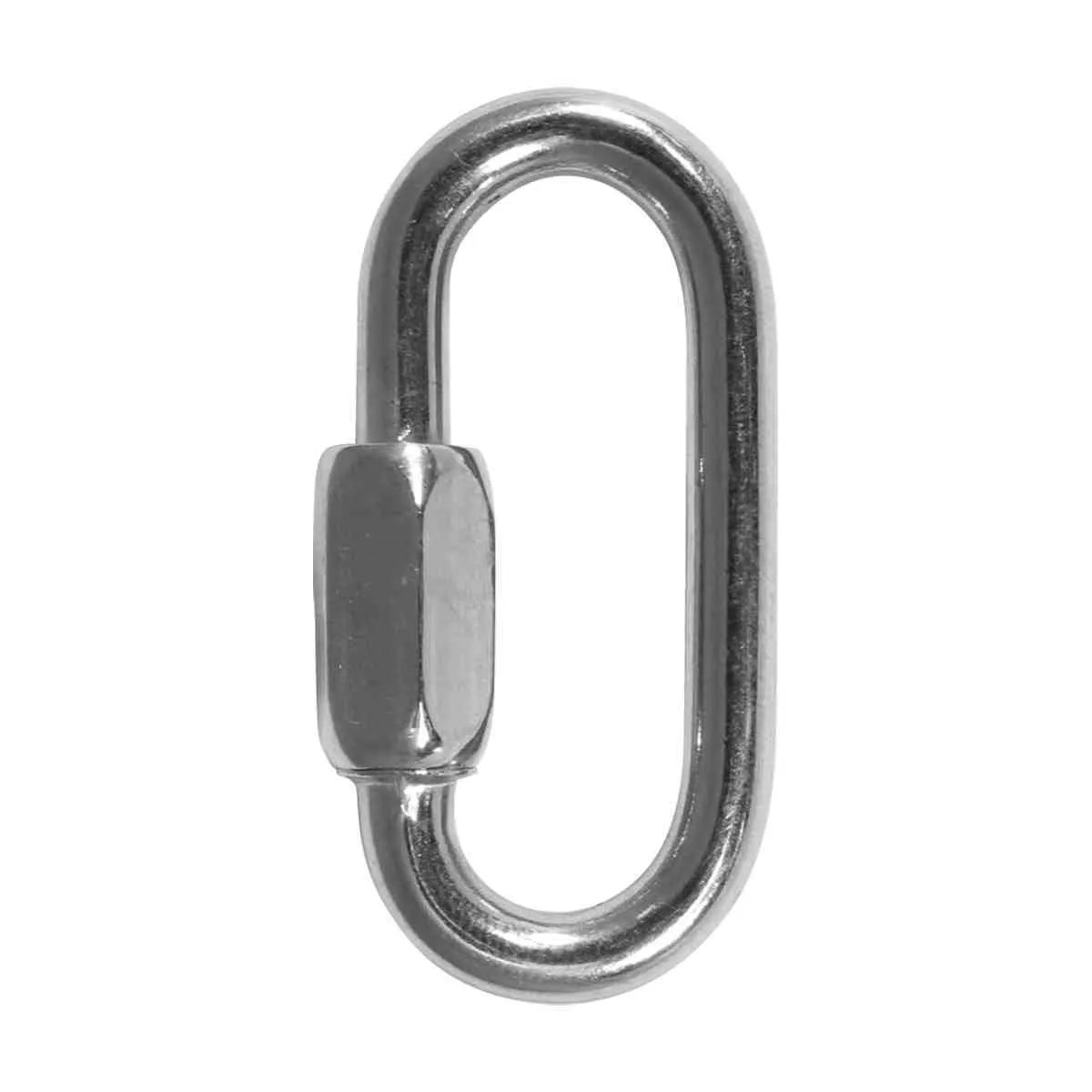

316 grade stainless steel. Threaded hexagon locknut supports the link when closed, while providing quick opening and secure closure.
‘P’ – Denotes packaged item
316 grade stainless steel. Threaded hexagon locknut supports the link when closed, while providing quick opening and secure closure.
‘P’ – Denotes packaged item
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Pack Qty | A mm | B mm | C mm | Max. Opening mm | Break Load kg |
|---|---|---|---|---|---|---|
| 164504 | 1 | 4 | 40 | 11 | 5 | 1400 |
| 164504P | 1 | 4 | 40 | 11 | 5 | 1400 |
| 164505 | 1 | 5 | 50 | 13 | 6 | 2250 |
| 164506 | 1 | 6 | 58 | 15 | 8 | 3250 |
| 164506P | 1 | 6 | 58 | 15 | 8 | 3250 |
| 164508 | 1 | 8 | 74 | 18 | 10 | 5500 |
| 164510 | 1 | 10 | 90 | 22 | 12 | 9000 |
