Description

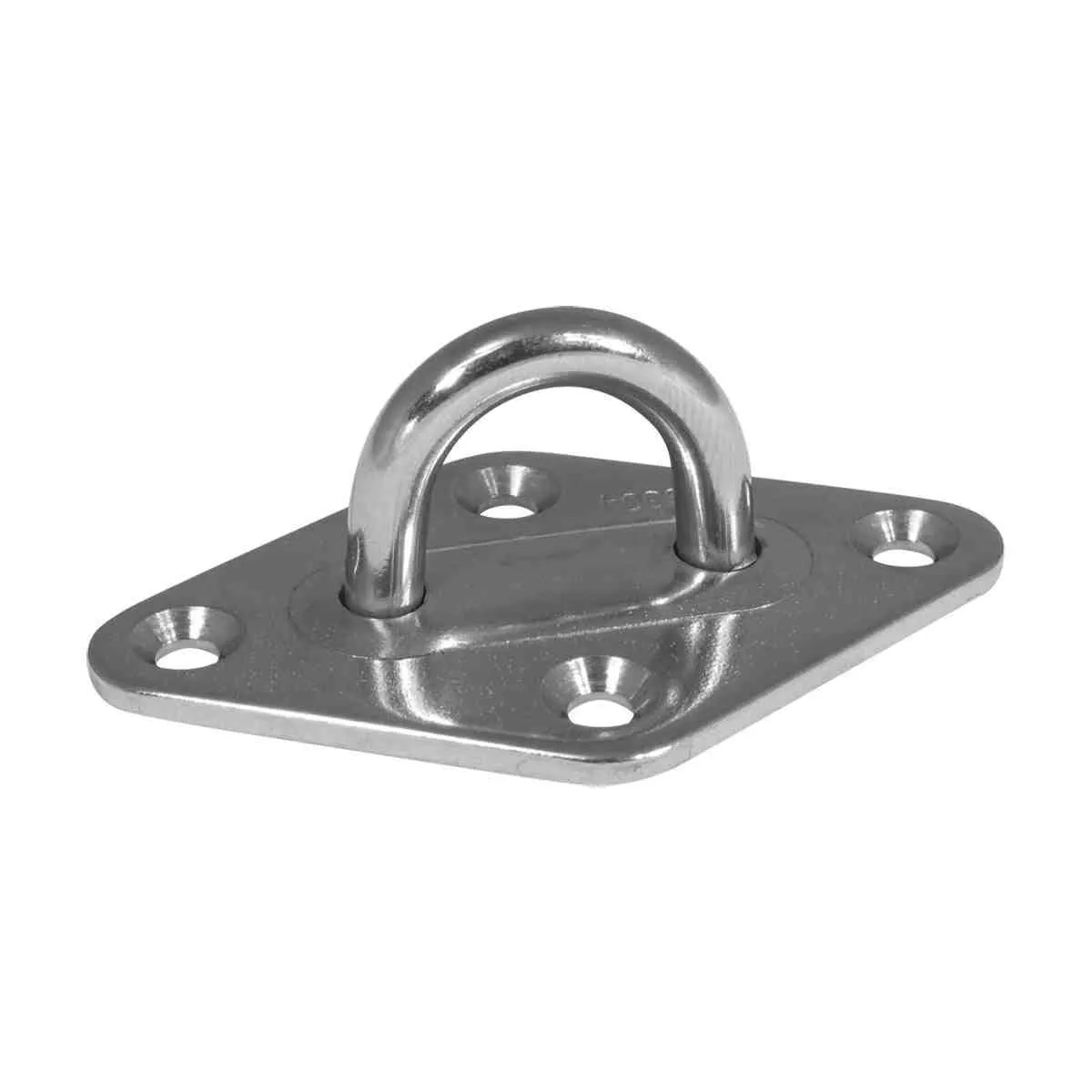

Polished 304 grade stainless steel pad eyes with diamond base. Pressed base plate, rolled and welded saddle.
‘P’ – Denotes packaged item
-40%
BLA Pad Eyes – Diamond Stainless Steel
Price range: $2.96 through $5.68
Additional information
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Pack Qty | A mm | B mm | C mm | D mm | Mount Screws mm | Break Load kg |
|---|---|---|---|---|---|---|---|
| 165314 | 1 | 37 | 59 | 21 | 5 | 4 c/s | 700 |
| 165314P | 1 | 37 | 59 | 21 | 5 | 4 c/s | 700 |
| 165316 | 1 | 40 | 64 | 26 | 6 | 4 c/s | 1000 |
| 165316P | 1 | 40 | 64 | 26 | 6 | 4 c/s | 1000 |
| 165318 | 1 | 50 | 80 | 33 | 8 | 5 c/s | 1600 |
