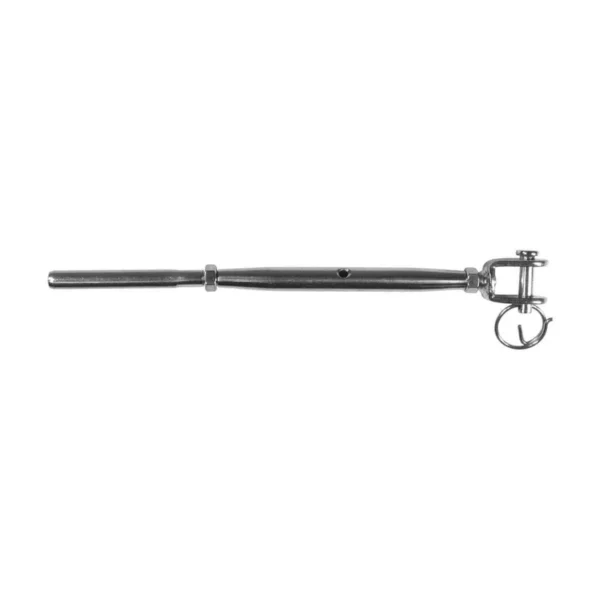

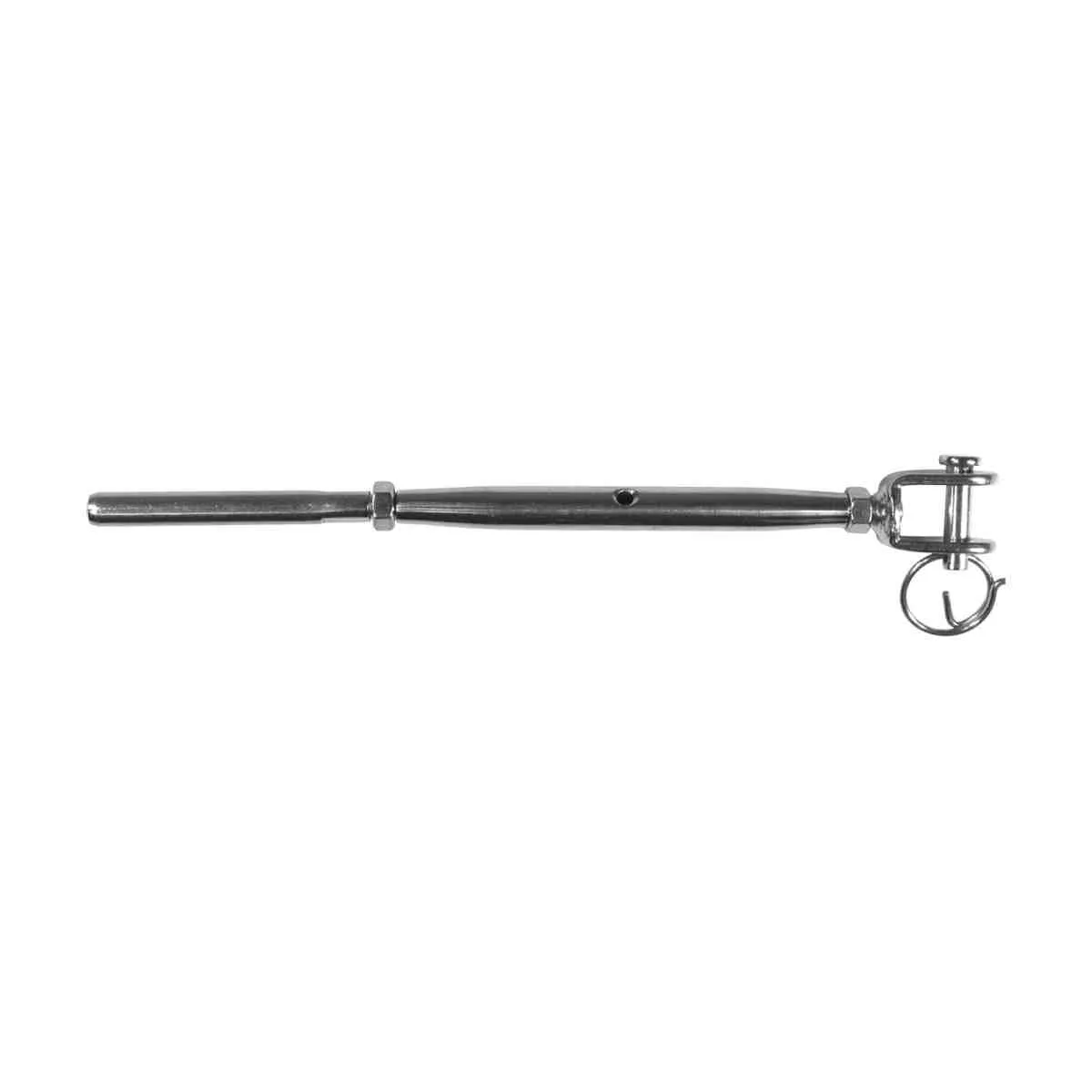

BLA Closed Body Turnbuckles – Stainless Steel Swage and Fork
$17.12 – $28.58
Description
316 grade stainless steel turnbuckles commonly used in industrial and balustrade applications. Pressed and welded fork one end, swage terminal the other end.
Additional information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 2 × 16.3 × 1.7 cm |
| Variation: | 162402 – S/STEEL & G316 3/32 M5, 162403 – S/STEEL & G316 1/8 M5, 162407 – S/STEEL & G316 5/32 M6, 162409 – S/STEEL & G316 3/16 M8 |
| BLA Code | Wire Dia. mm | Wire Dia. in | Thread | A Closed mm | B mm | C mm | Adjust Range mm | Breaking Load kg |
|---|---|---|---|---|---|---|---|---|
| 162402 | 2.5 | 3/32 | M5 | 153 | 5 | 7 | 65 | 600 |
| 162392 | 3 | 2013 | M5 | 155 | 5 | 7 | 65 | 600 |
| 162393 | 3 | 2013 | M6 | 175 | 6 | 8 | 65 | 1000 |
| 162403 | 2013 | 1/8 | M5 | 155 | 5 | 7 | 65 | 600 |
| 162404 | 2013 | 1/8 | M6 | 175 | 6 | 8 | 65 | 1000 |
| 162405 | 4 | 5/32 | M8 | 190 | 8 | 15 | 65 | 1000 |
| 162407 | 4 | 5/32 | M6 | 182 | 6 | 8 | 65 | 1000 |
| 162408 | 1/4 | M12 | 288 | 12 | 17.5 | 65 | 1000 | |
| 162409 | 5 | 3/16 | M8 | 213 | 8 | 11 | 80 | 1400 |
| 162406 | 5 | 3/16 | M10 | 235 | 10 | 12 | 100 | 2200 |
Related products
BLA Pelican Hook Body – Stainless Steel
$21.42 – $27.41BLA Swage Threaded Terminals – Stainless Steel
$5.24 – $9.19BLA Swage Fork Terminals – Stainless Steel

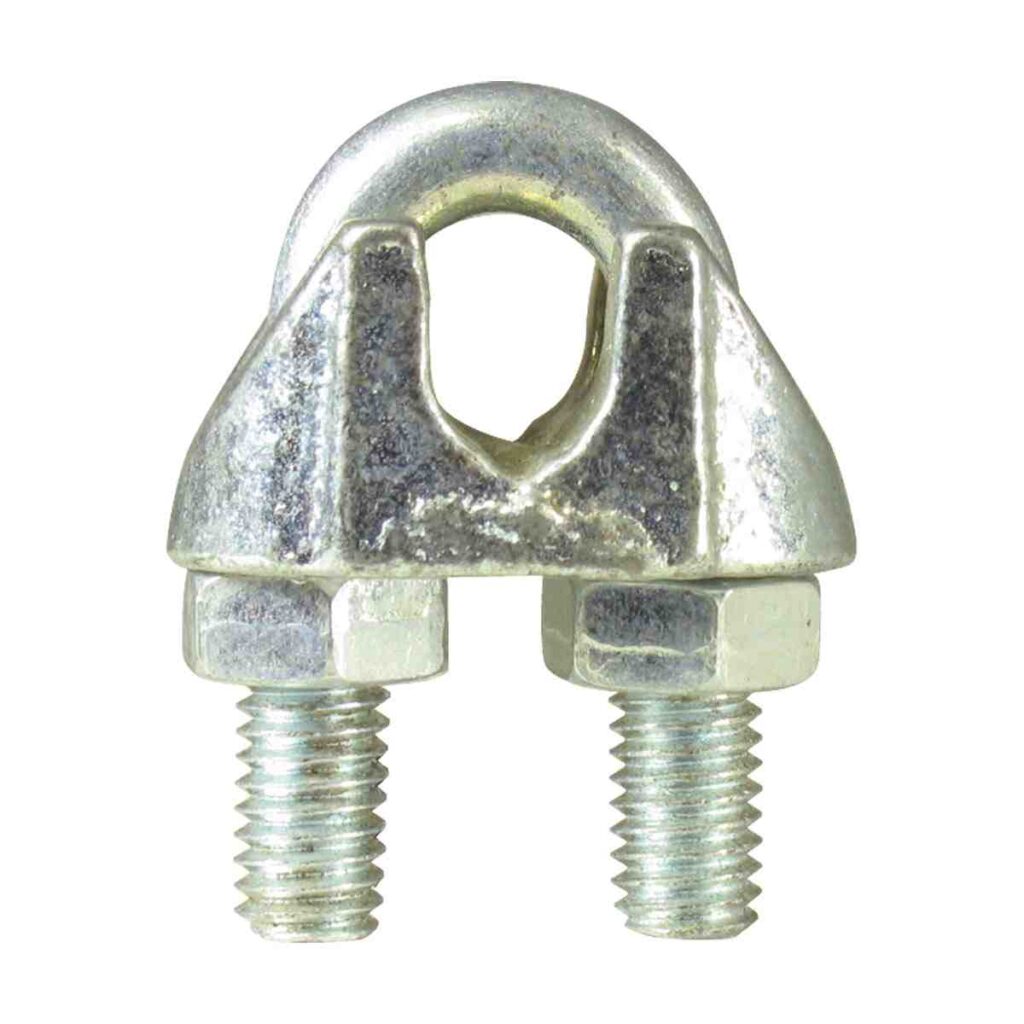

$8.39 – $10.64BLA Wire Rope Grips – Galvanised
