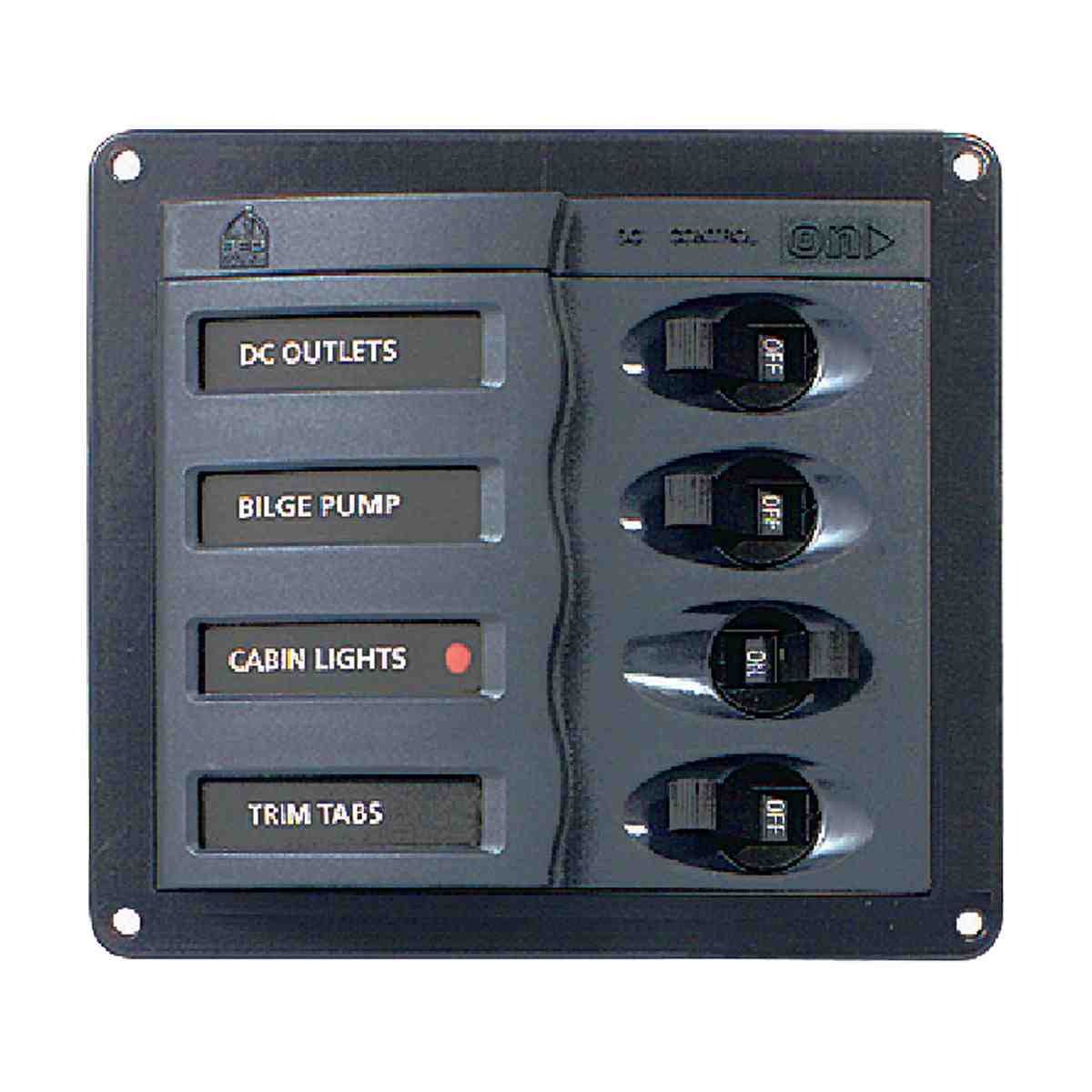

BEP 'Contour' Circuit Breaker Panels - No Meters

BEP ‘Contour’ Circuit Breaker Panels – No Meters

Price range: $341.72 through $1,701.22
SKU: G113140

Description

Circuit breaker panels with stylish curved front facia incorporating recesses for circuit breaker toggles preventing them from being switched on accidentally.

Features
• Durable grey powder coated marine grade aluminium base panel
• Marine quality, magnetic, hydraulic, UL listed trip free breakers
• Backlit labels supplied, refer page 156
• Suitable size negative busbar supplied, refer page 183
• Red LED indication for circuits ‘on’
• Green LED back lighting for meters and labels
• Double pole configurations available for survey or additional safety

With the flexibility of the ‘Contour’ four way plastic modules, BEP can build panels to custom requirements if requested.

Drop resistors required for LEDs in 24 volt installations
113461 Drop resistor BEP 8 way suits 113142 & 113144
113462 Drop resistor BEP 12 way suits 113151, 113152 & 113153
113463 Drop resistor BEP 16 way suits 113160
113465 Drop resistor BEP 24 way suits 113175 & 113176

Additional information

Variation:

113140 – DC 4CB 12-24V, 113142 – DC 8CB VERTICAL 12-24V, 113144 – DC 8CB HORIZONTALONTAL 12-24V, 113151 – DC 12CB HORIZONTAL, 113152 – DC 12CB 12-24V, 113153 – DC 12CB VERTICAL, 113160 – DC 16CB 12-24V, 113175 – DC 24CB VERTICAL 12-24V, 113176 – DC 24CB HORIZONTAL 12-24V

Dimensions
Weight0.56 kg
Dimensions10 × 15.7 × 17.6 cm
BLA CodeCircuitsOverall Size W x H mmCut Out Size W x H mmIntrusion mmMount Screws GaugePower VoltLabel SheetCircuit Breakers 5 amp10 amp15 amp20 amp25 amp30 amp
1131404127 x 115107 x 95656 r/h456271121–––
1131428127 x 200107 x 180656 r/h4562712231––
1131448239 x 115219 x 95656 r/h4562712231––
11315112351 x 115331 x 95656 r/h456271344–1–
11315212239 x 200219 x 180656 r/h456271344–1–
11315312127 x 285107 x 265656 r/h456271344–1–
11316016239 x 200219 x 180656 r/h45627145511–
11317524239 x 370219 x 331656 r/h456271, 2 & 3588111
11317624351 x 200331 x 180656 r/h456271, 2 & 3588111
