Description

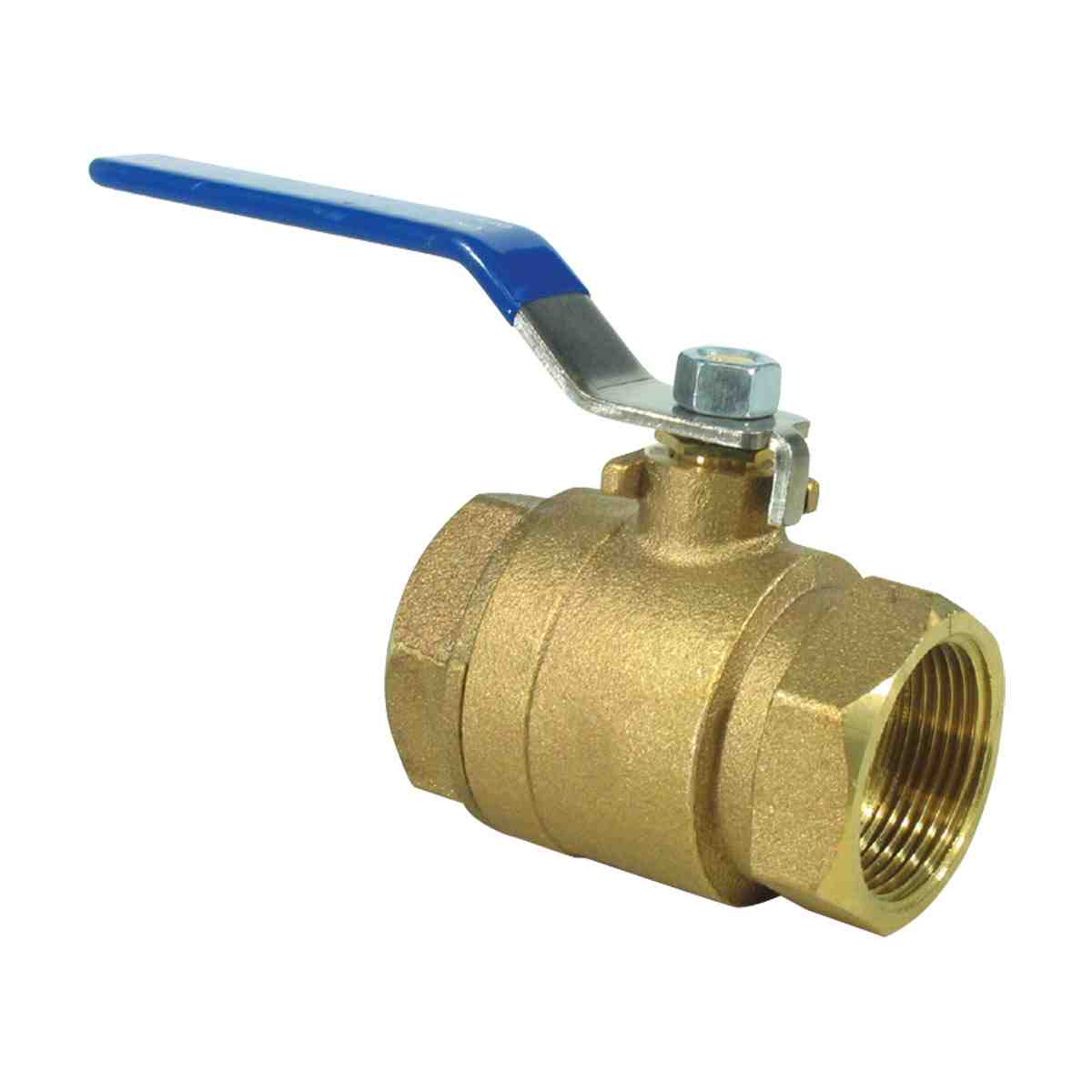

Bronze ball valves. Stainless steel handle. BSP thread for direct connection to through hull fitting. Not suitable for blackwater.
Bronze ball valves. Stainless steel handle. BSP thread for direct connection to through hull fitting. Not suitable for blackwater.
| ||||
| Dimensions | ||||
|---|---|---|---|---|
| ||||
| BLA Code | Thread BSP | Length mm | Width mm | Height mm | Handle Radius mm |
|---|---|---|---|---|---|
| 137004 | 1/2″ | 53 | 29 | 60 | 80 |
| 137006 | 3/4″ | 60 | 37 | 73 | 100 |
| 137008 | 1″ | 74 | 47 | 90 | 125 |
| 137010 | 1 1/4″ | 82 | 57 | 96 | 125 |
| 137012 | 1 1/2″ | 92 | 66 | 112 | 160 |
| 137014 | 2 | 105 | 84 | 130 | 160 |
