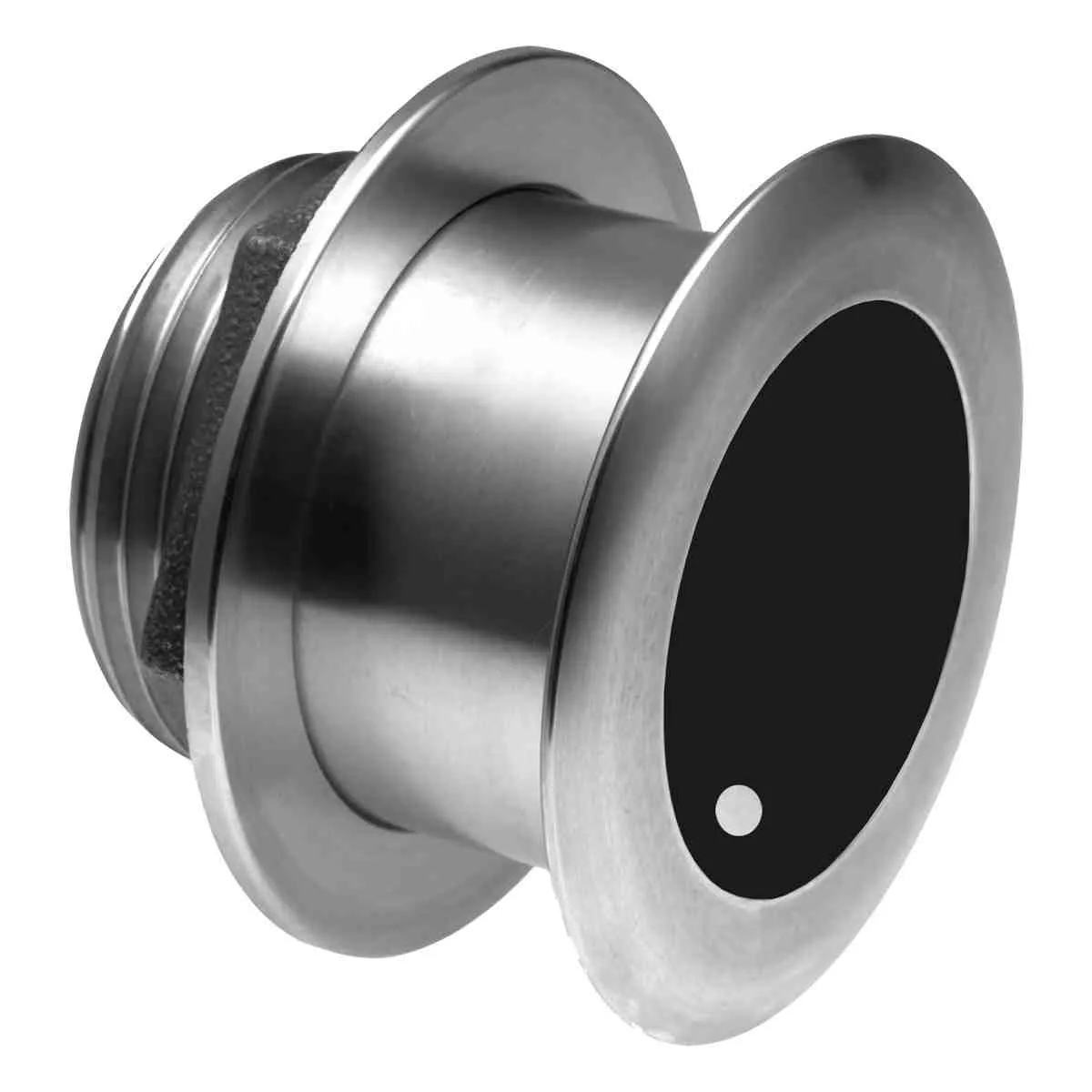

AIRMAR SS175 1000w Chirp-Ready Tilted Element Thru-Hull Transducers- Helix Transducers

AIRMAR SS175 1000w Chirp-Ready Tilted Element Thru-Hull Transducers- Helix Transducers

Price range: $2,120.89 through $2,656.81
SKU: G103464

Description

Airmar’s low profile Chirp-ready transducer models are the perfect addition to your Humminbird Helix or Solix. The stainless steel housing is installed almost flush to the hull giving great performance at speed. The transducer suits fibreglass & timber boats, and also comes with a sleeve for Aluminium boat installation. The SS175 transducers include a cable for Helix or Solix and can be directly plugged into your unit. If you have a Side Imaging or Down Imaging unit purchase a splitter cable for seamless operation between your SI transducer and Airmar thru hull. (Helix will not support the Low transducer seamlessly through the splitter but can be plugged in independently).

SS175 transducers are available in three Tilted Element™ models. Choose the model to suit your hull deadrise and installation location. When the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Fixed 12° tilted version for 8° to 15° hull deadrise
• Fixed 0° tilted version for 0° to 7° hull deadrise

Specifications
• Weight 2.7 kg (6 lb)
• Hull Deadrise Up to 24°
• Acoustic Window Urethane
• Hole Size 98 mm (3-7/8”)
• One internal ceramic assembly

Additional information

Variation:

103464 – HIGH THRU HULL 1KW 0° TS, 103465 – MEDIUM THRU HULL 1KW 0° TS, 103466 – LOW THRU HULL 1KW 0° TS, 103467 – HIGH THRU HULL 1KW 12° TS, 103468 – MEDIUM THRU HULL 1KW 12° TS, 103469 – LOW THRU HULL 1KW 12° TS, 103470 – HIGH THRU HULL 1KW 20° TS, 103471 – MEDIUM THRU HULL 1KW 20° TS, 103472 – LOW THRU HULL 1KW 20° TS

Dimensions
Weight0.0001 kg
Dimensions0.1 × 0.1 × 0.1 cm
BLA CodeDescriptionMax. Depth Capability
103464SS175 High Thru Hull 1KW 0 DEG TS Helix305m
103465SS175 Med Thru Hull 1KW 0 DEG TS Helix457m
103466SS175 Low Thru Hull 1KW 0 DEG TS Helix762m
103467SS175 High Thru Hull 1KW 12 DEG TS Helix305m
103468SS175 Med Thru Hull 1KW 12 DEG TS Helix457m
103469SS175 Low Thru Hull 1KW 12 DEG TS Helix762m
103470SS175 High Thru Hull 1KW 20 DEG TS Helix305m
103471SS175 Med Thru Hull 1KW 20 DEG TS Helix457m
103472SS175 Low Thru Hull 1KW 20 DEG TS Helix762m
