Access Hatches - Luran® Recessed Lid

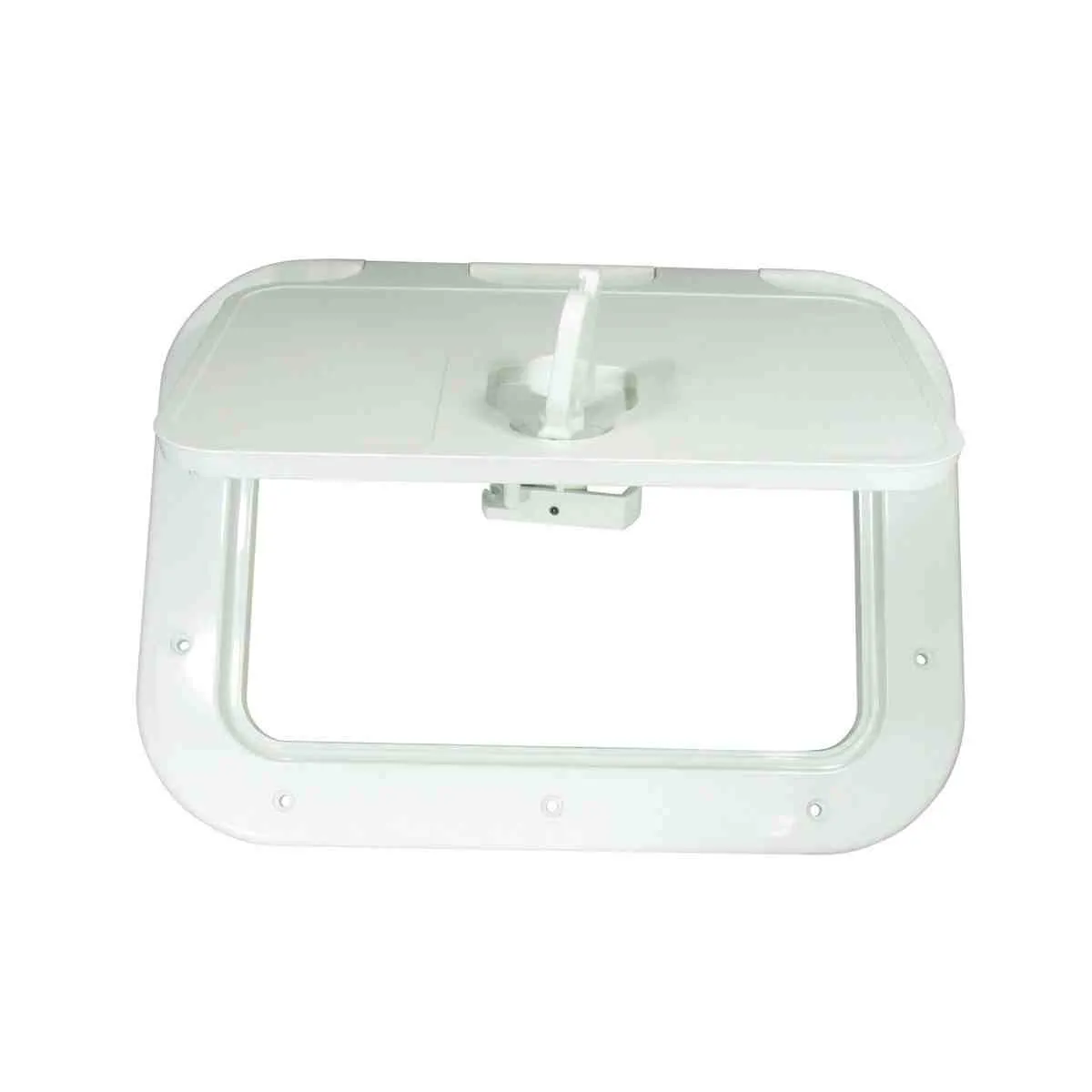

Access Hatches – Luran® Recessed Lid

Price range: $73.52 through $169.02
SKU: G173402

Description

Injection moulded in Luran® plastic for optimum strength, U.V. and weather resistant properties. The lid Features a non-skid surface and is recessed flush with the mounting flange, hinging through 100°. Available in a choice of white or grey. An optional key lock set is also available. Designed for mounting on any flat surface, but weatherproof only when mounted on vertical surfaces. Protrusion above deck 11mm. Screw holes 5mm countersunk.

Accessories
173250 Optional lock set

Additional information

Variation:

173402 – OSCULATI LURAN 280MM X 380MM WHITE, 173404 – OSCULATI LURAN 280MM X 380MM GREY, 173406 – OSCULATI LURAN 348MM X 596MM WHITE, 173408 – OSCULATI LURAN 348MM X 596MM GREY

Dimensions
Weight0.97 kg
Dimensions28.4 × 38.9 × 4.5 cm
BLA CodeColourOutside mmInside mmCut Out mmIntrusion mm
173402White280 x 380180 x 280210 x 31021
173404Grey280 x 380180 x 280210 x 31021
173406White348 x 596244 x 494275 x 52525
173408Grey348 x 596244 x 494275 x 52525
