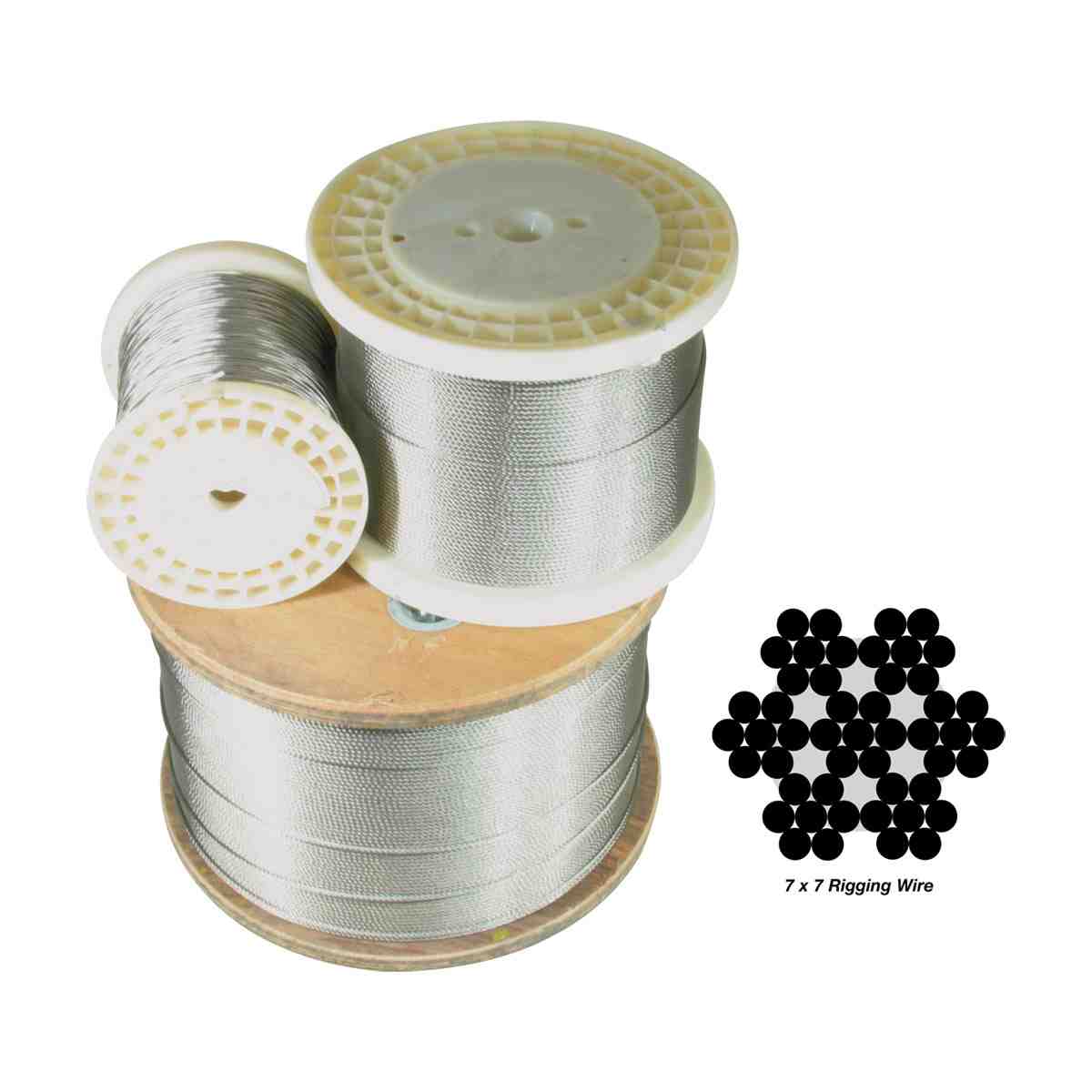

7 x 7 Wire Rope - 316 Grade Stainless Steel

7 x 7 Wire Rope – 316 Grade Stainless Steel

Price range: $207.58 through $451.91
SKU: G167288

Description

7 x 7 construction is formed from seven strands of seven wires. Suited to semi-flexible applications such as balustrading, lifelines and irrigation applications.

Additional information

Variation:

167288 – SUNGSAN G316 1/16 '' 305M, 167290 – SUNGSAN G316 5/64 '' 305M, 167292 – SUNGSAN G316 3/32 '' 305M, 167293 – SUNGSAN G316 3MM 305M

Dimensions
Weight3.72 kg
Dimensions15.8 × 15.8 × 16.1 cm
BLA CodeDiameter mmDiameter inBreaking Load kgGrams per mRoll Size m
16728820131/1619011.15305
16729020135/6425517.38305
16729220133/3237024.98305
1672933201358535.40305
16729420131/869543.41305
16729620135/32103067305
