Description

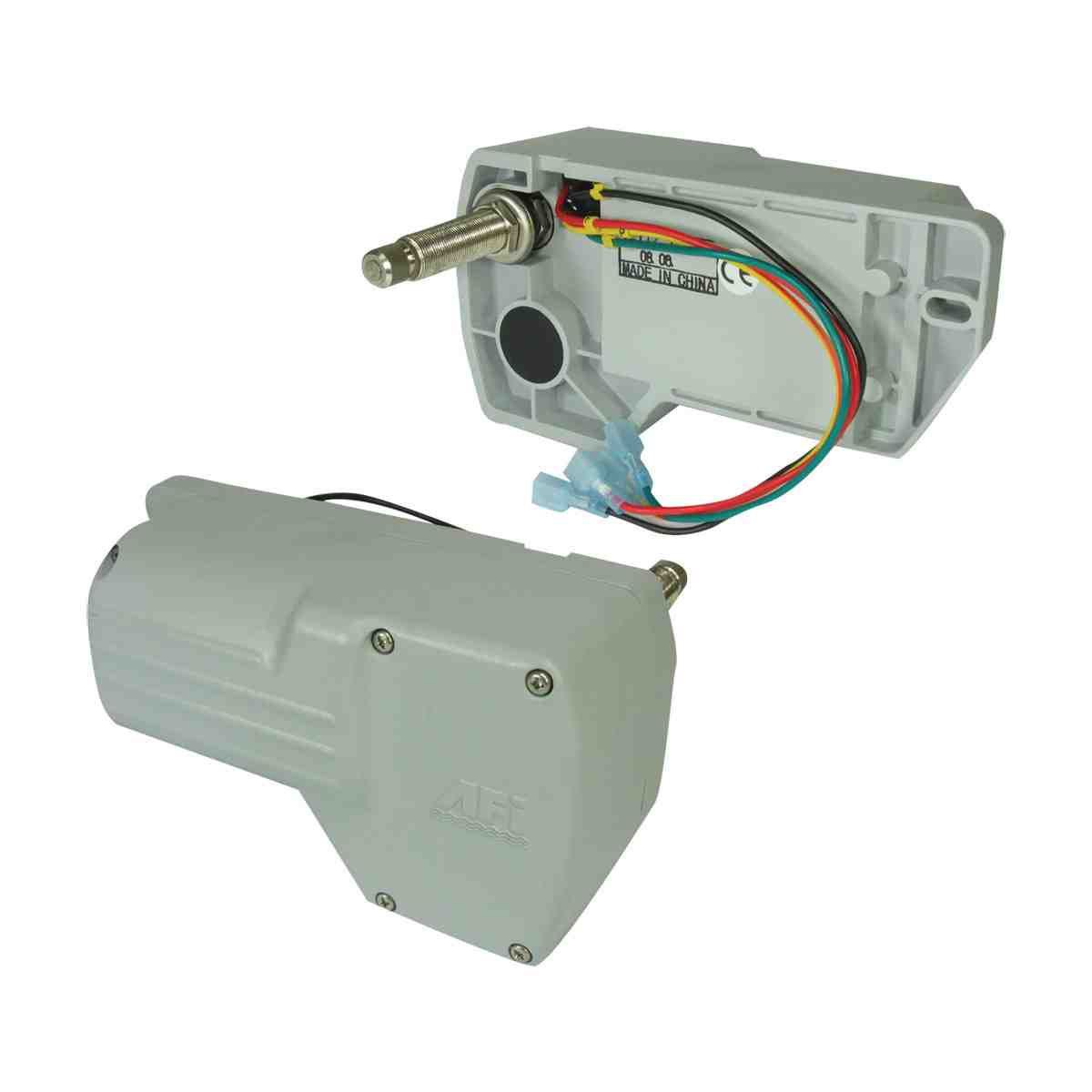

Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps.

Features
• Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
• M16 Brass shaft
• Factory pre-set sweep angles of 110°, with easy adjustment to 45°, 60° or 80°
• Two speed motor
• Coast to park with adjustable right or left self parking
• Sealed 150mm 16AWG wire leads, with RF shielded circuitry
• Stall torque 160 kgf/cm; 15.7 Nm (139 in – lbs)
• Stall current 9 – 10.5 amps at 12V
• No load current 1 – 1.6 amps at 12V
• 3 year warranty
